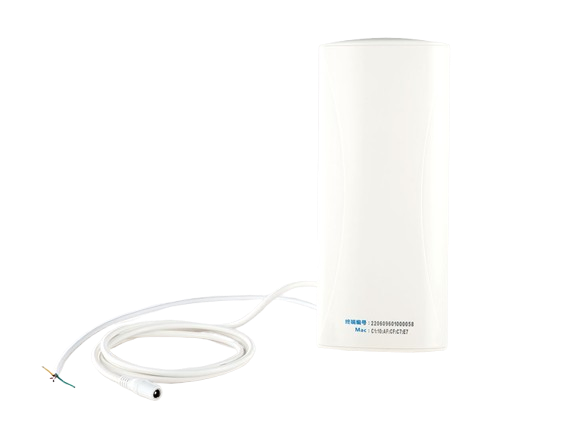

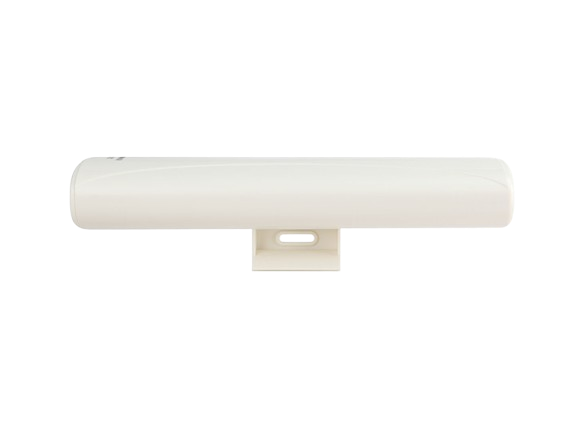

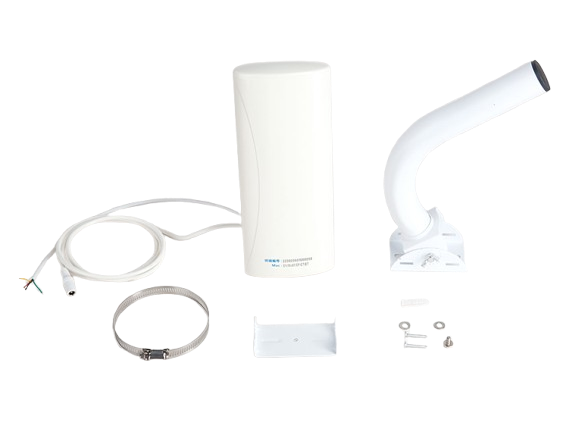

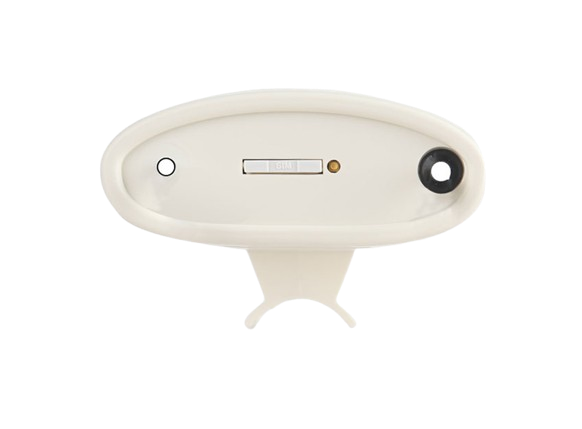

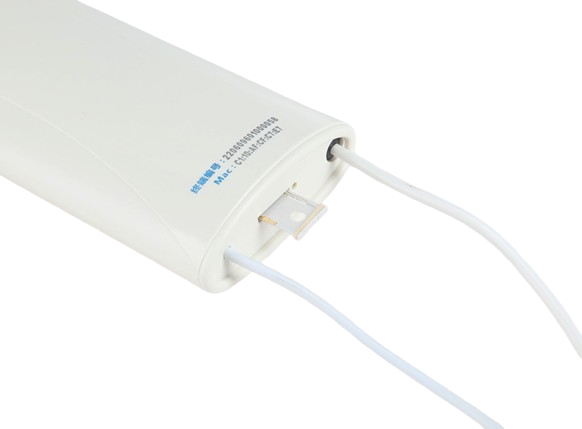

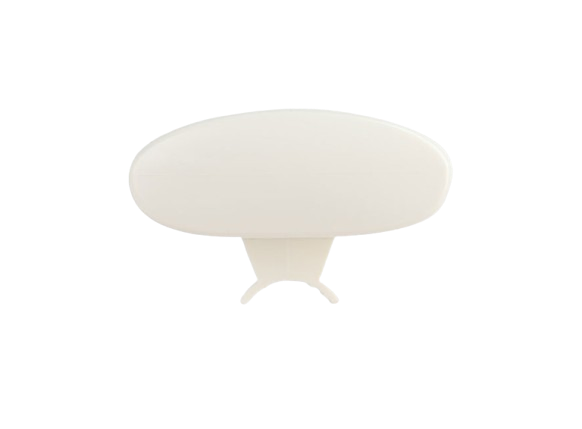

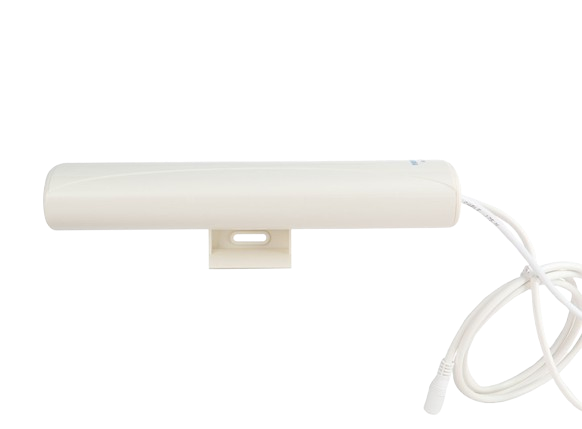

2.4G Directional Integrated Reader
Model NO.：
MR7903
Key Features
MR7903 widely used in IOT market for data collecting purpose. With excellent RFID technology collecting RFID tag signal in real time, positioning of people, vehicles and items with the location information of the base station itself.
2.4GHz ISM open band, comply with wireless management regulations
Directional antenna reading range up to 300 meters.
Device management such as parameter configuration and remote upgrade via TCP/IP and GPRS.
Bluetooth BLE4.0 wireless connection for device parameter configuration.
High reliability: rainproof, lightning protection, against typhoon.
Applications:1. Personnel identification and tracking, especially in large airports, parks, cities and other large open areas.
2. Attendance management of campus and factory.
Parameters
| Model | MR7903 |
| Identify type | Directional identify |
| Signal modulation mode | GFSK |
| Traffic rate | 1Mbit/s |
| Working frequency | 2440MHz |
| Antenna gain | 12dBi directional antenna |
| MAX receive sensitivity | -90dbm |
| Reading range | MAX 300m (based on tag type) |
| IP | IP65 |
| Material | ABS, high temperature resistant, white color |
| Dimension | 239*100*40mm |
| Input voltage | 9-12V |
| Net weight | 417g |

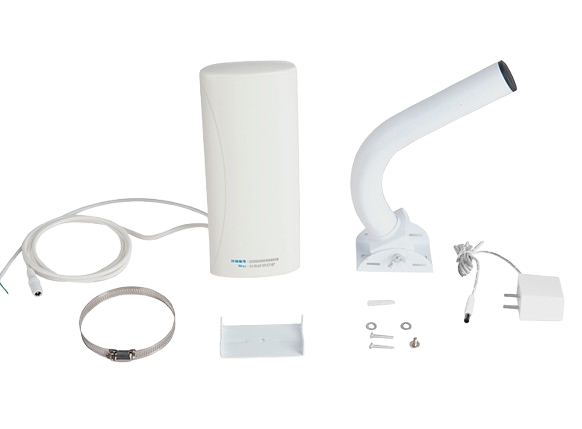

| Power adaptor | 12V 2A |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -40℃~80℃ |
| Protocol | MarktraceRFID protocol |
| Transfer method | 4G and TCP/IP |
