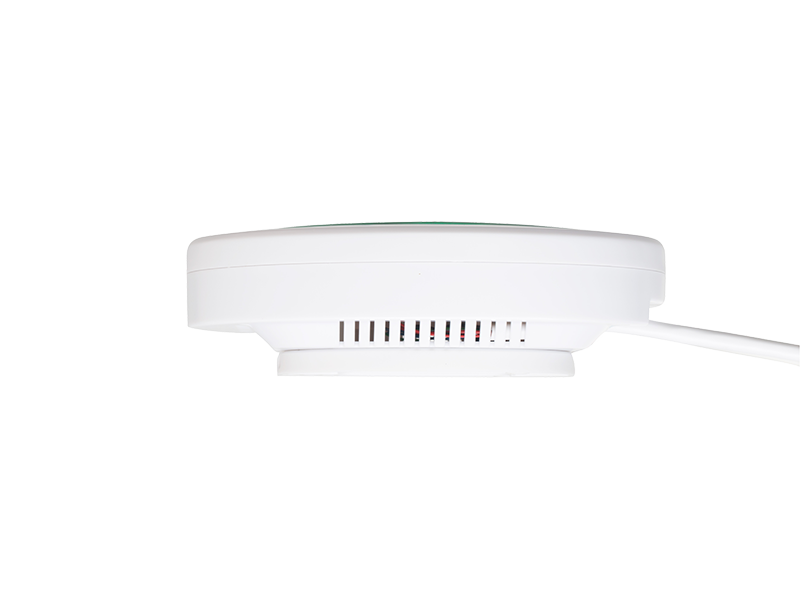

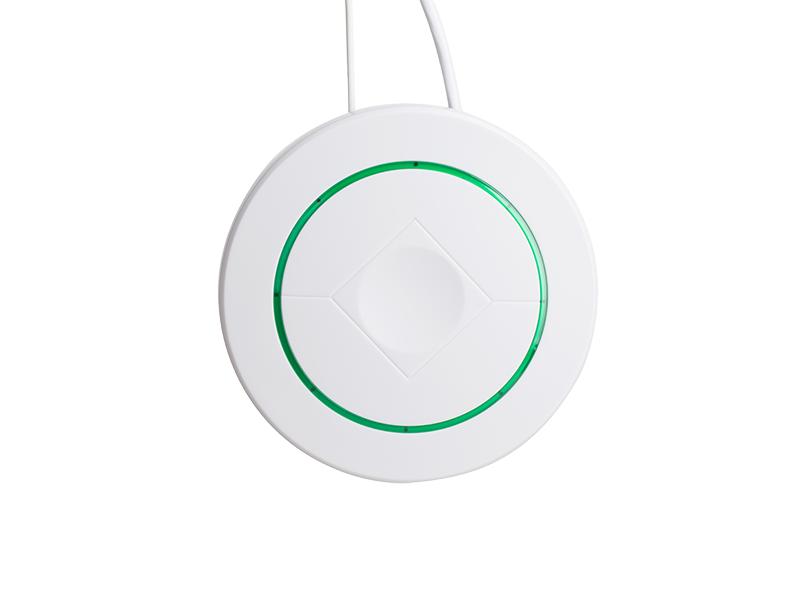

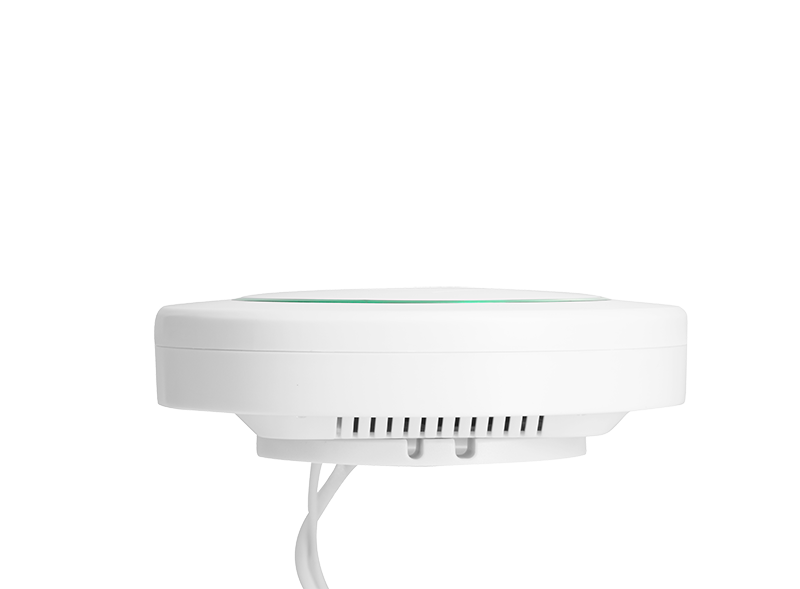

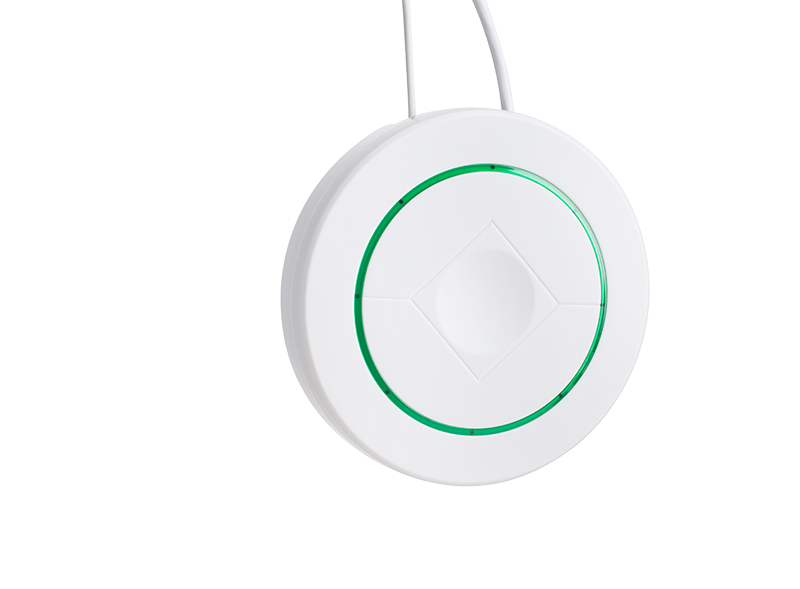

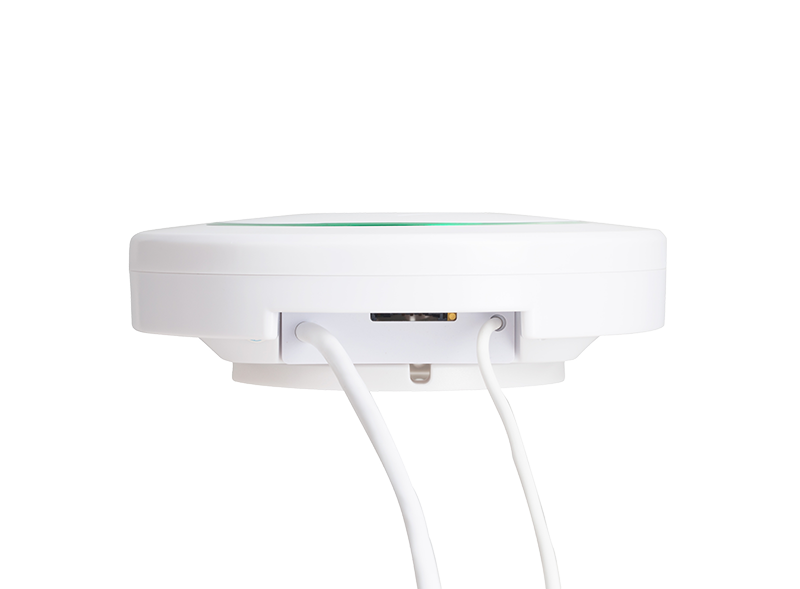

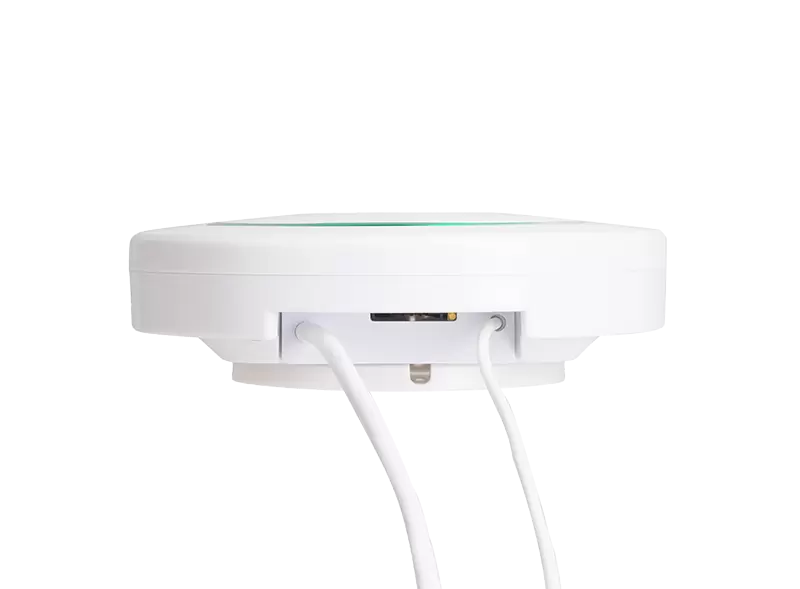

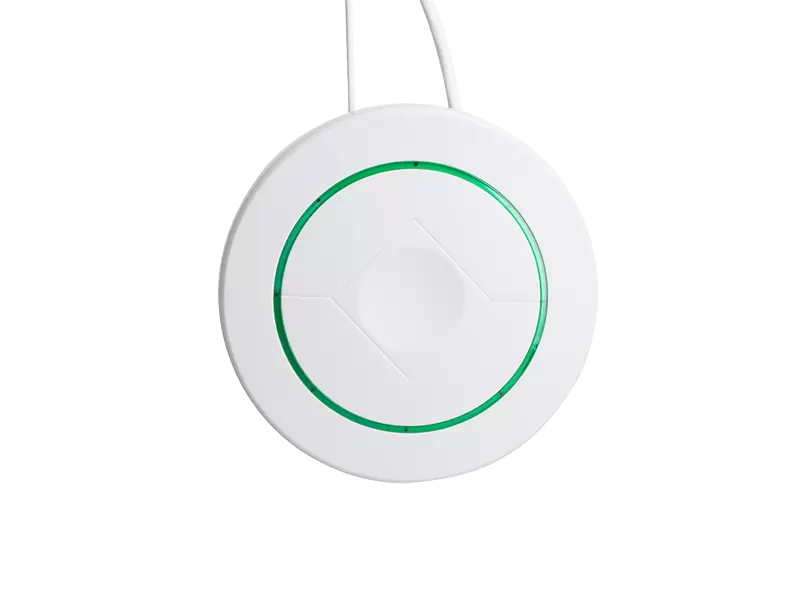

2.4G Long Range Active Reader
Model NO.：
MR7902
Key Features
GPRS based station, wireless designed.
Support Bluetooth for mobile devices App connect and testing.
Reading range Working with 7dBm tag can reach 200m in open environment.

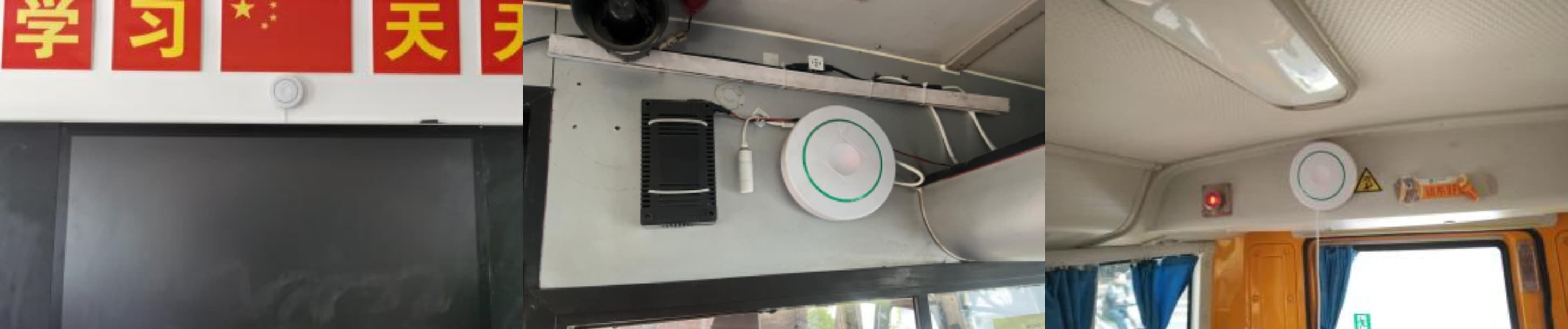

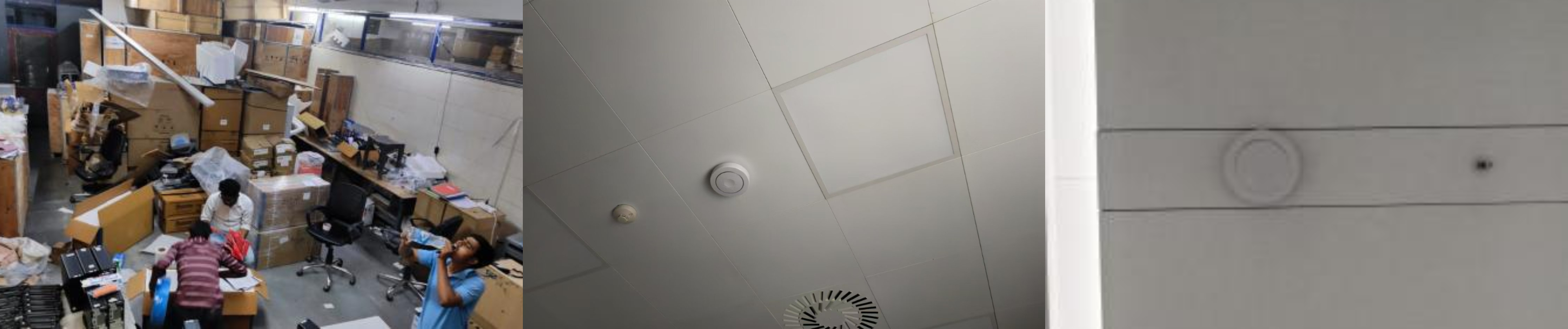

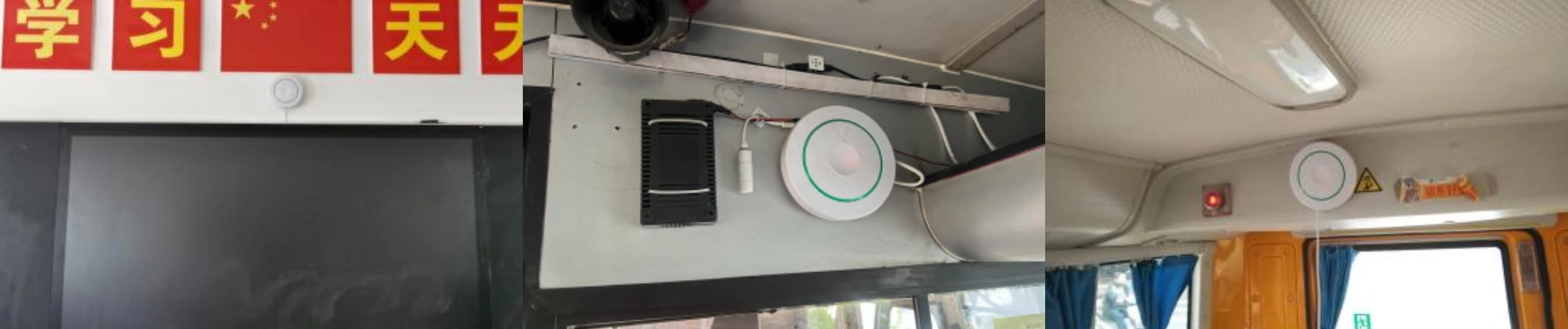

Widely used in school bus and building entrance site.
Applications:1. Personnel identification and tracking.
2. Attendance management of campus and factory.
3. Trace tracking in school bus and classroom.
Parameters
| Model | MR7902 |
| Material | ABS, high temperature resistant |
| Dimension | φ168*51.5mm |

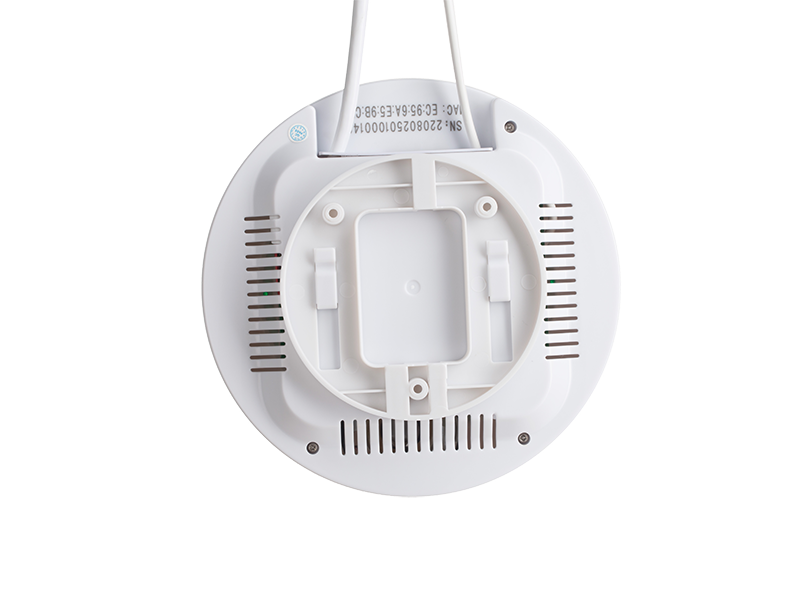

| Way to install | wall-mounted, ceiling fixed |
| Net weight | 0.3kg |
| Gain | 3.5dBi |
| Reading range | 200m MAX (based on tag type) |
| Signal modulation mode | GFSK |
| Traffic rate | 1Mbit/s |
| Working frequency | 2440MHz |
| MAX receive sensitivity | -90dbm |
| Input voltage | 9-12V |
| Power consumption | 300mA |

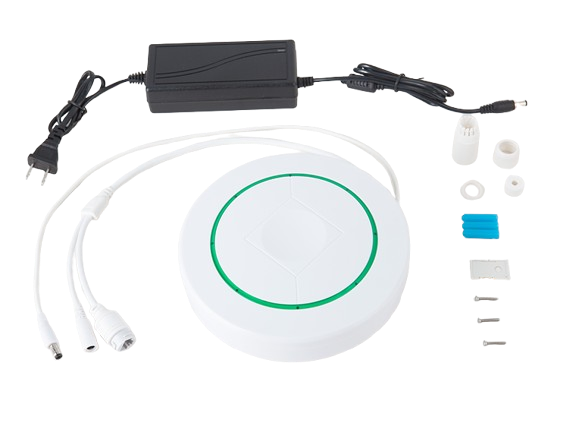

| Power adaptor | 12V 2A |
| Color | White |
| Protocol | MarktraceRFID protocol |
| Transfer method | 4G and TCP/IP |
| 4G capabilities | Based on country |
| Operating temperature | -20℃~60℃ |
| Storage temperature | -40℃~85℃ |
| Certifications | FCC and CE |
