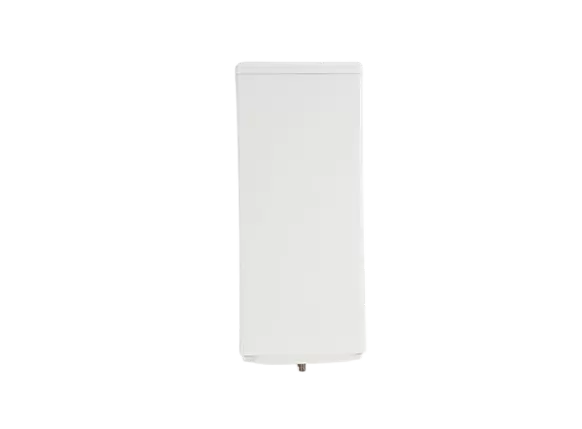

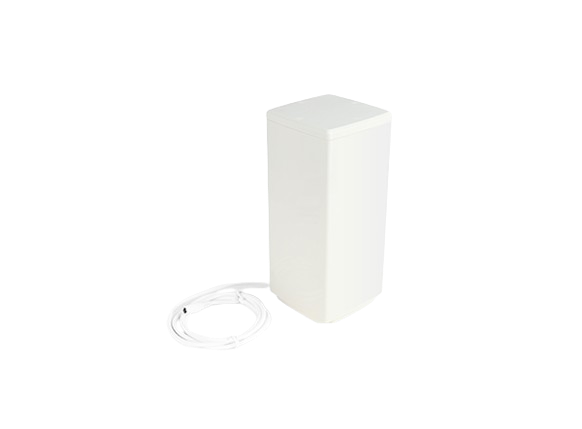

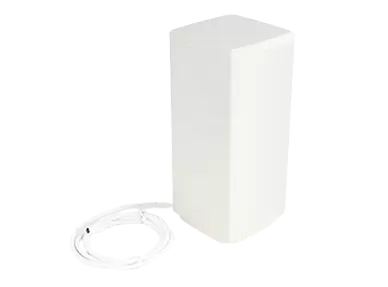

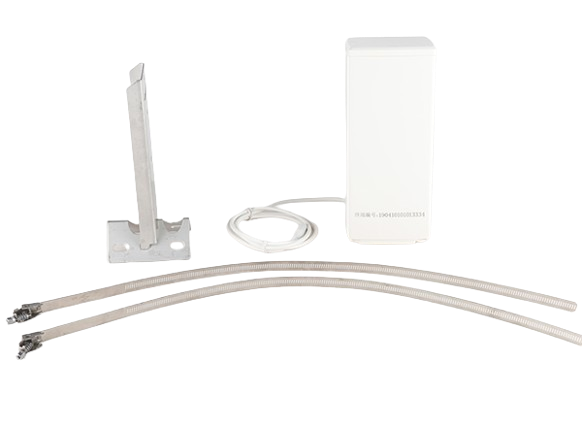

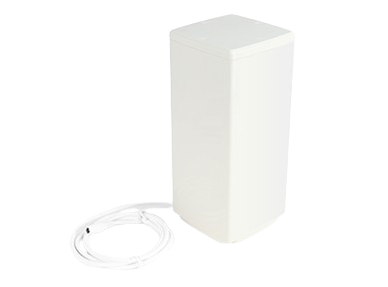

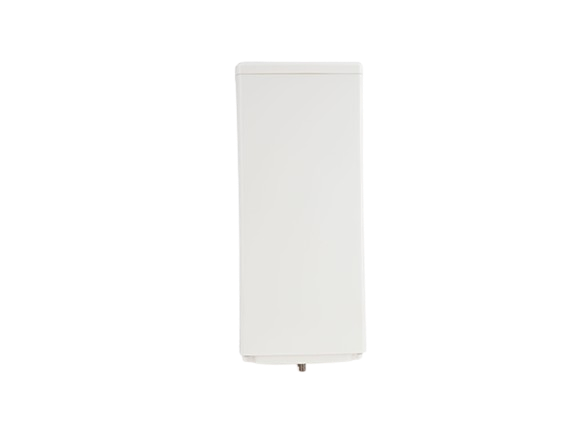

2.4G Ultra-long Range Integrated Reader
Model NO.：
MR7901P
Key Features
MR7901P widely used in IOT market for data collecting purpose. With excellent RFID technology collecting RFID tag signal in real time, positioning of people, vehicles and items with the location information of the base station itself.
2.4GHz ISM open band, comply with wireless management regulations.
Dual-polarized directional antenna for directional reading up to 400 meters.

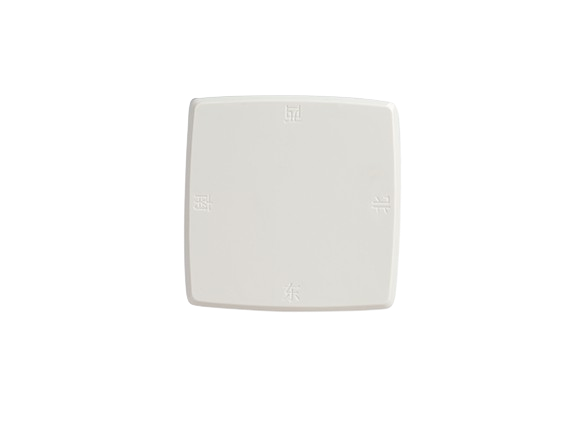

The four antennas correspond to four directions,determine the orientation of the RFID tags.
Device management such as parameter configuration and remote upgrade via TCP/IP and GPRS.
Bluetooth BLE4.0 wireless connection for device parameter configuration.
High reliability: rainproof, lightning protection, against typhoon.

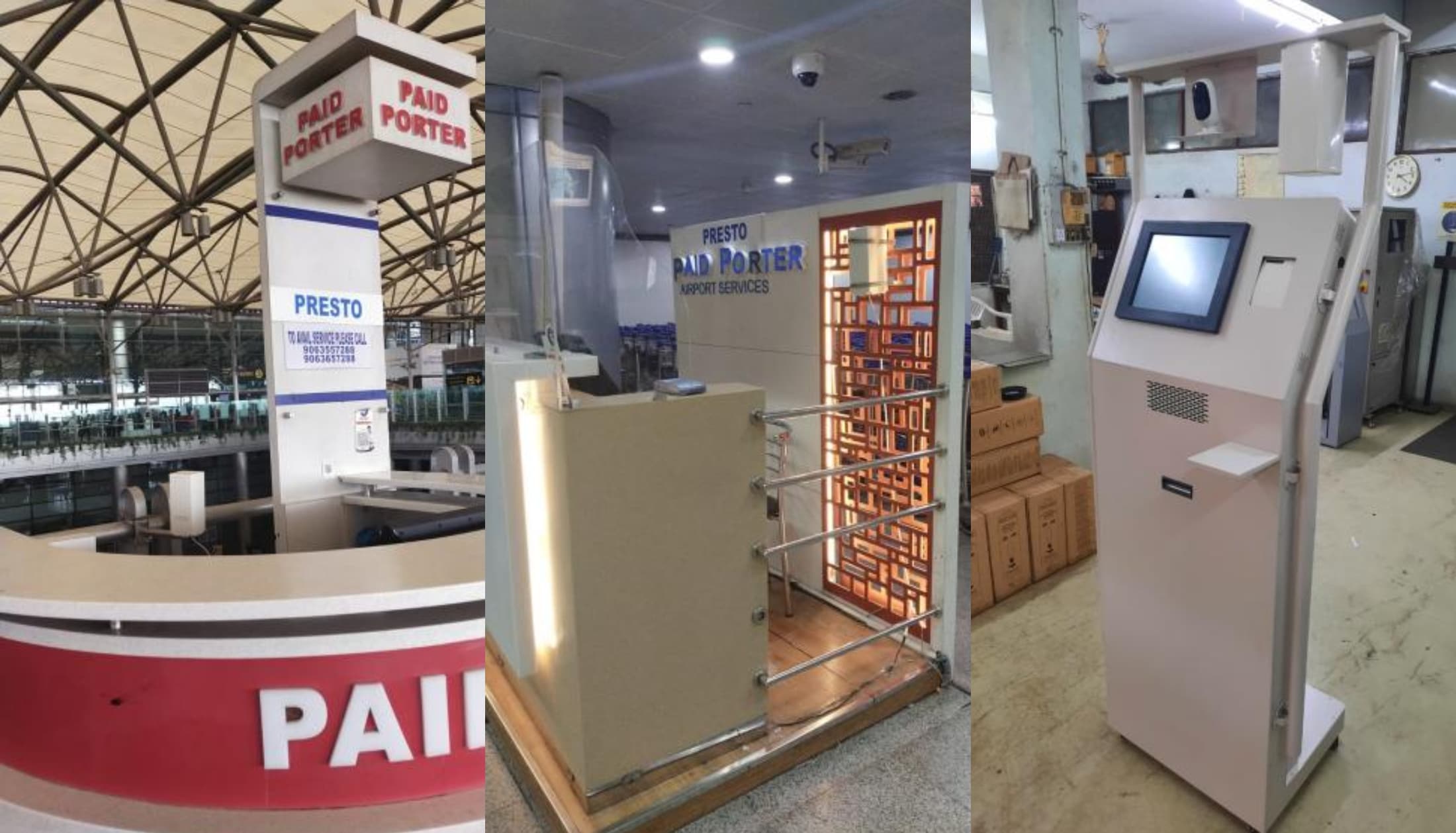

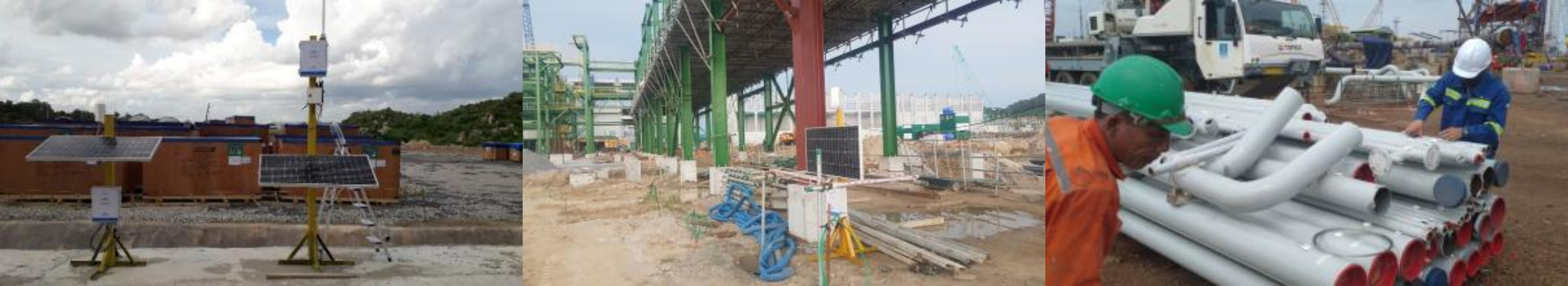

Applications:1. Personnel identification and tracking, especially in large airports, parks, cities andother large open areas.

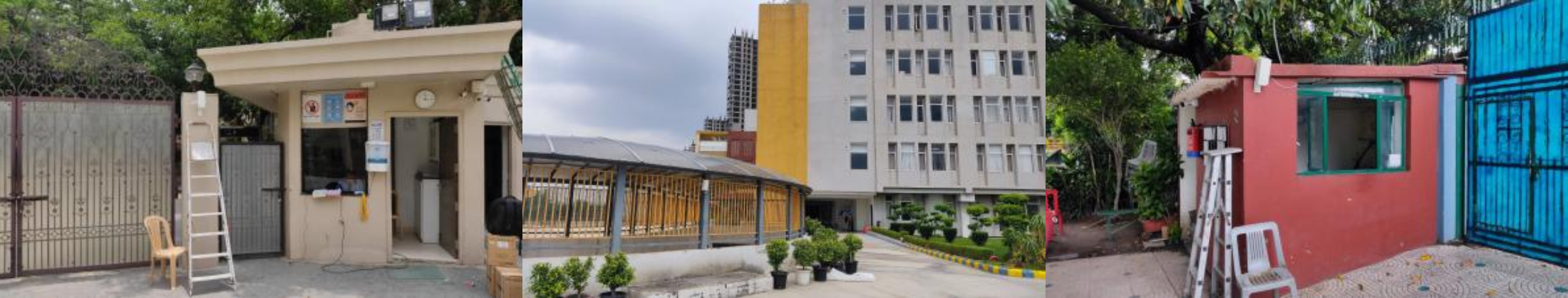

2. Attendance management of campus and factory.
3. Animal husbandiy industry, vessel identification and construction site assetsupervision, etc.
Parameters
| Model | MR7901P |
| Identify type | 4 antenna inside, can use as omnidirectional and directional both. |
| Signal modulation mode | GFSK |
| Traffic rate | 1Mbit/s |
| Working frequency | 2440MHz |
| Lateral tension (wind-proof) | 20N (Typhoon level 12) |
| Lightning protection level | ≧ 4000V |
| Antenna gain | 12dBi Dual polarization directional antenna |
| MAX receive sensitivity | -90dbm |
| Reading range | MAX 400m (based on tag type) |
| IP | IP65 |
| Material | ABS, high temperature resistant, white color |
| Dimension | 230.5*106*106mm |
| Input voltage | 9-12V |
| Net weight | 2kg |
| Power consumption | 300mA |
| Power adaptor | 12V 2A |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -45℃~85℃ |
| Protocol | MarktraceRFID protocol |
| Transfer method | 4G and TCP/IP |
| Certifications | FCC and CE |
