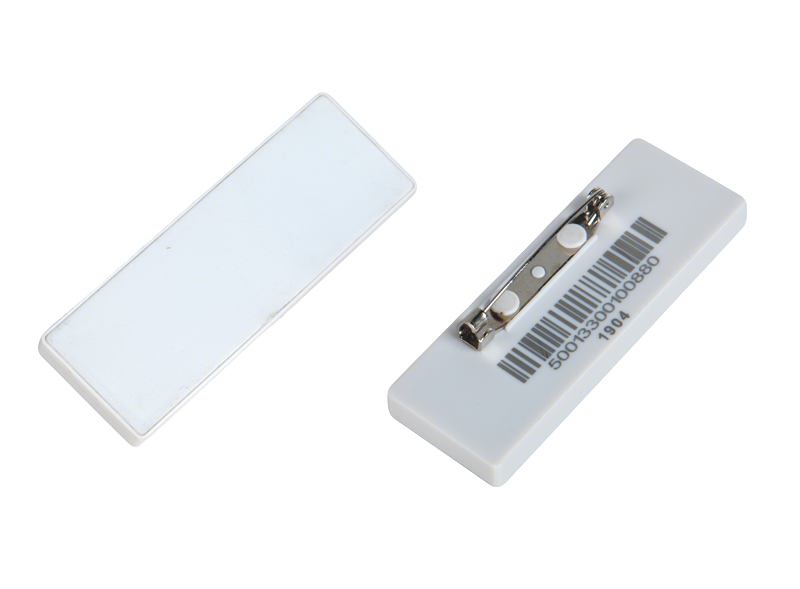

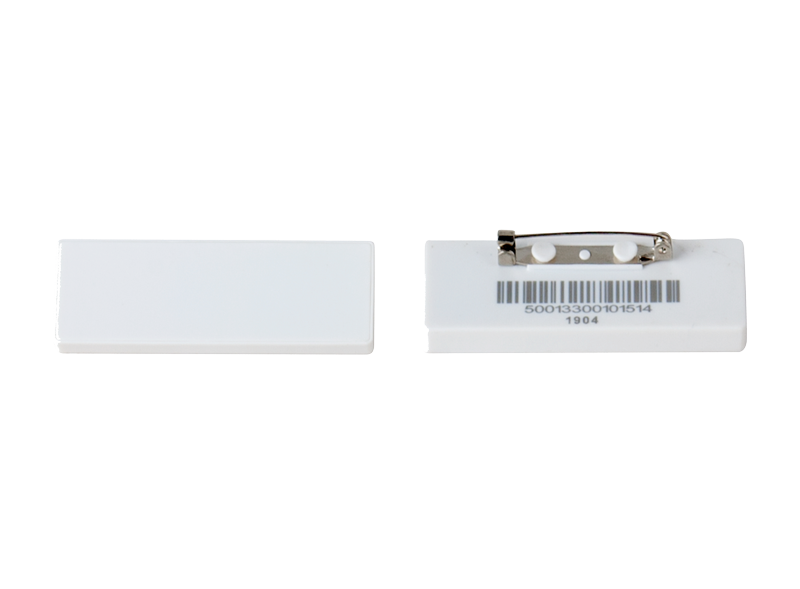

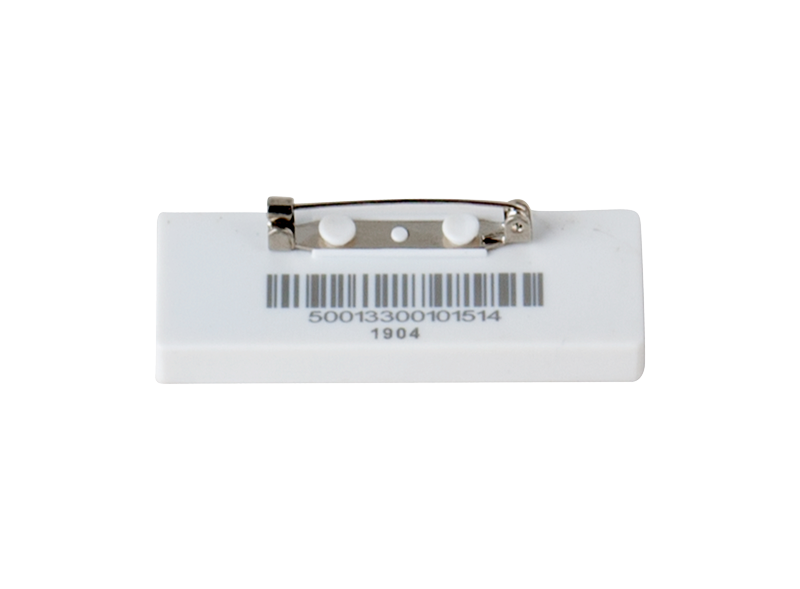

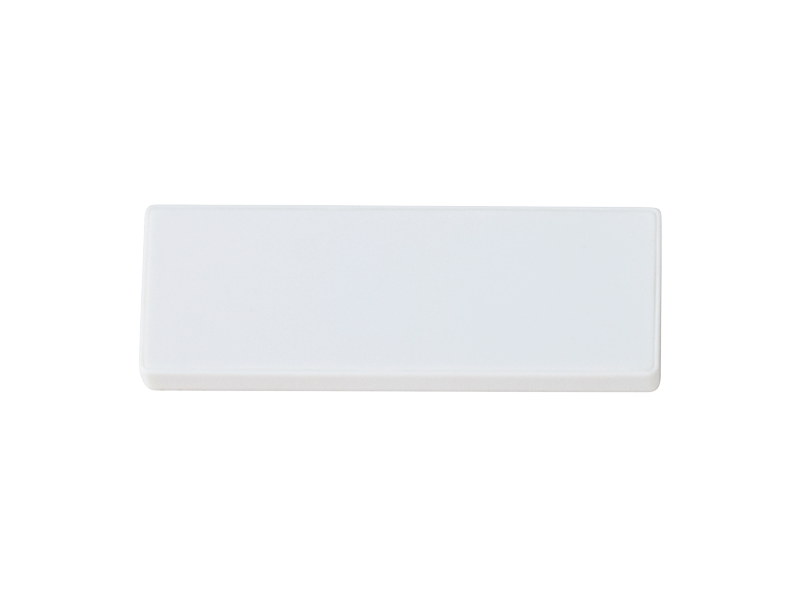

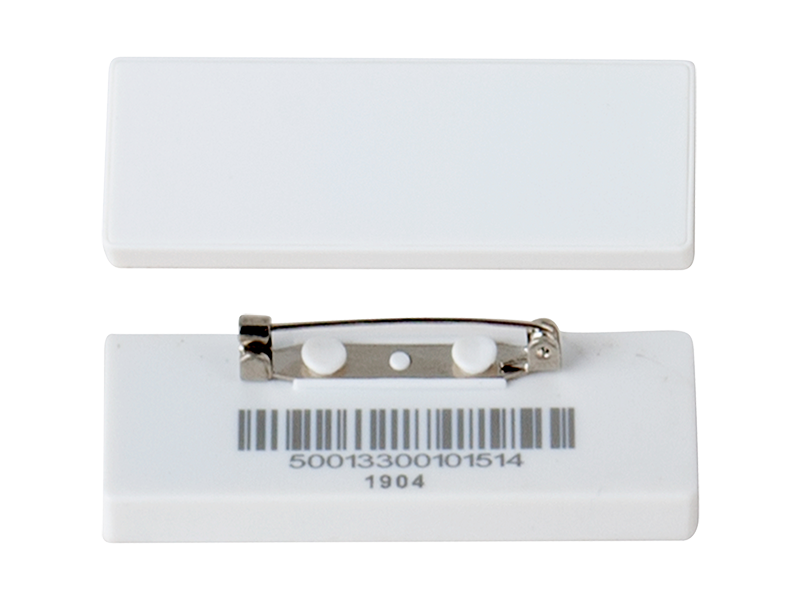

2.4G School Badge RFID Tag
Model NO.：
HX605
Key Features
MarktraceRFID school badge tag is a typical type for people tracking. With beautiful design, this badge tag widely used in students/employee attendance, events and conference etc.The typical application of this school badge tag is school student attendance and trace tracking.
Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability.
Effective reading range up to 30m (depend on reader and antenna, software configurable).
Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range.
Hybrid design 2.4G + 13.56MHz, 13.56Mhz effective reading rang >3cm.
Parameters
Items | Parameter |
Frequency | 2.4GHz |
Protocols | MarktraceRFID reader protocol |
RF Power | 0dBm |
Modulation | GFSK |
Communication Rate | 1Mbit/s |
Quiescent Current | <2uA |
Peak Current | <10mA |
Average Current | <10uA |
Signal Type | Beacon |
Signal Interval | 1s |
Reading Range | >30m |
Weight | 13g |
Dimensions | 70*25*6.6mm |
Color | Gray |
Material | ABS |
Life Time | 3 years |
IP | 67 |
Operating temperature | -20℃~+45℃ |
Storage temperature | -30℃~+65℃ |
Operating humidity | <85% |
13.56MHz Features: | |
Memory | 8Kbit |
IC | FM1108 |
Protocol | ISO14443A |
Communication Speed | 106kbit/s |
