2.4G Current Monitoring RFID Tag
Model NO.：
MR3873X
Key Features

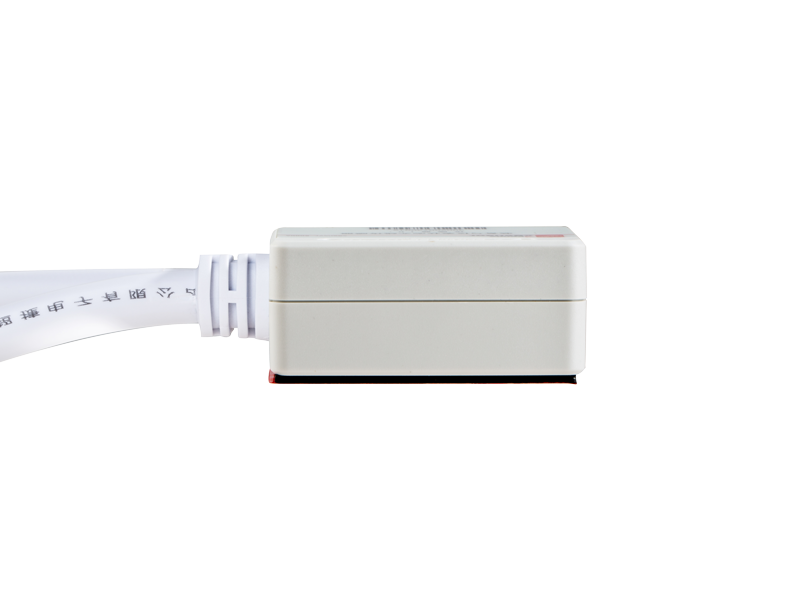

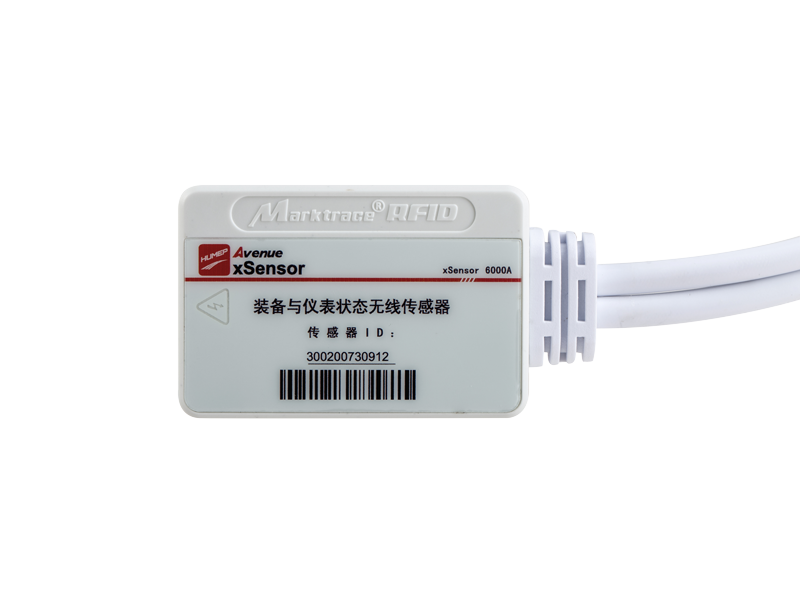

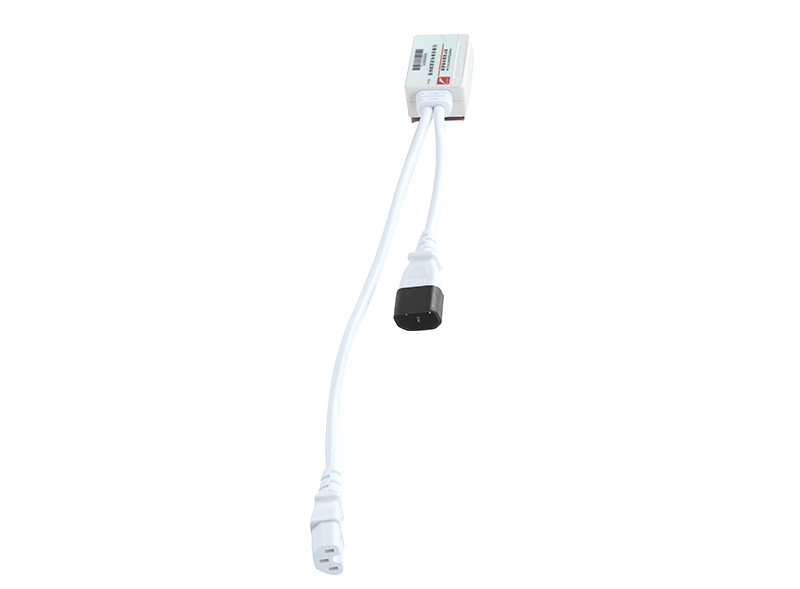

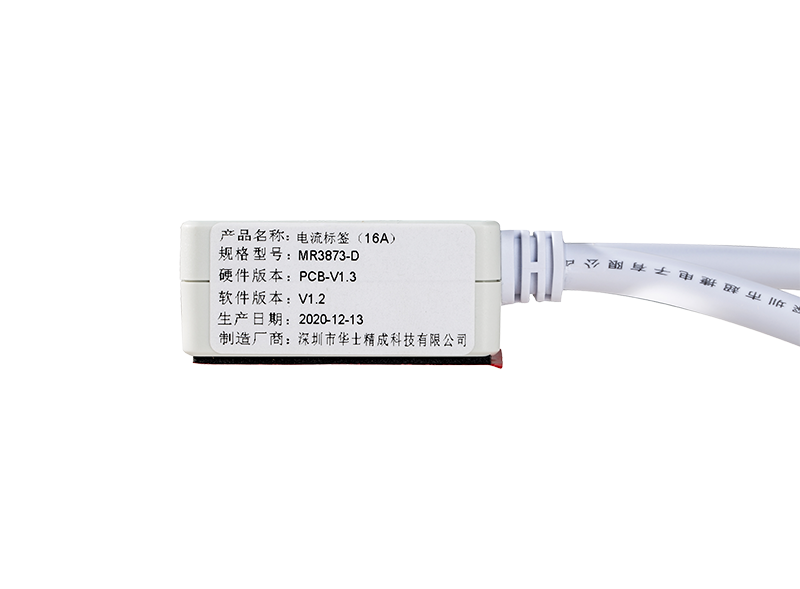

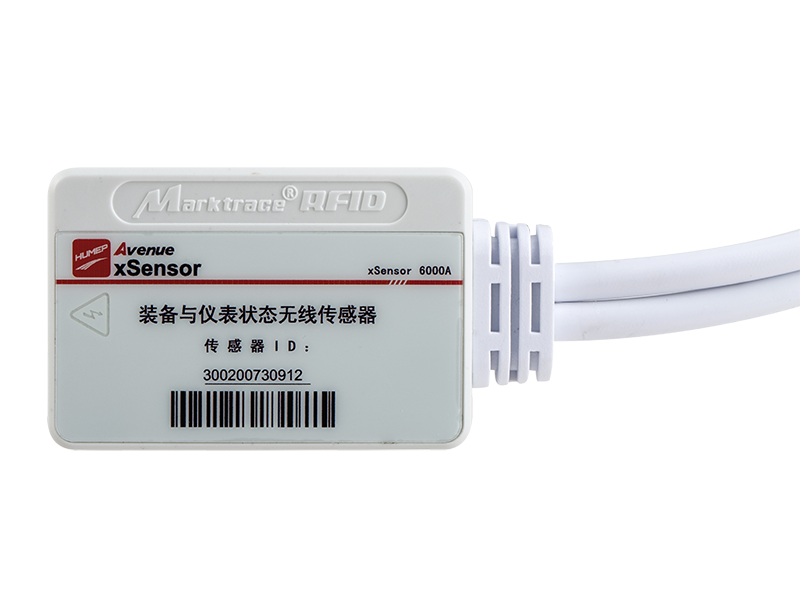

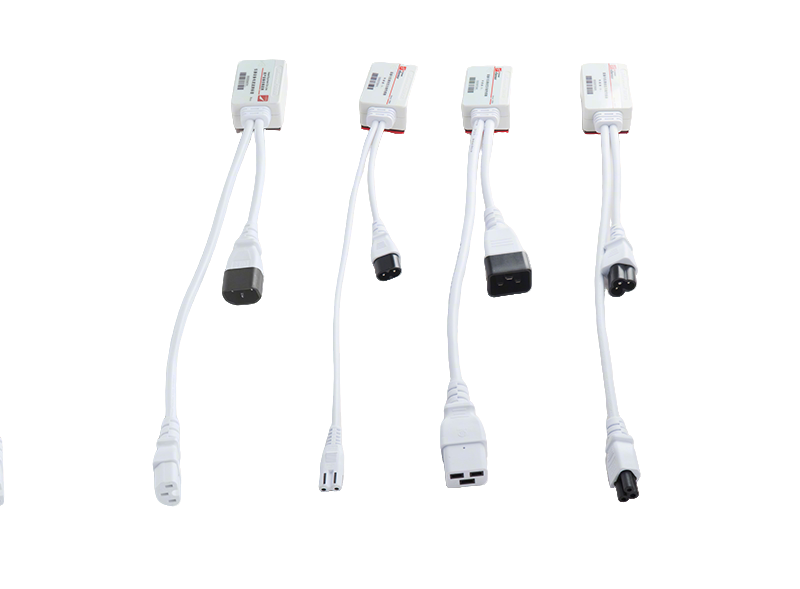

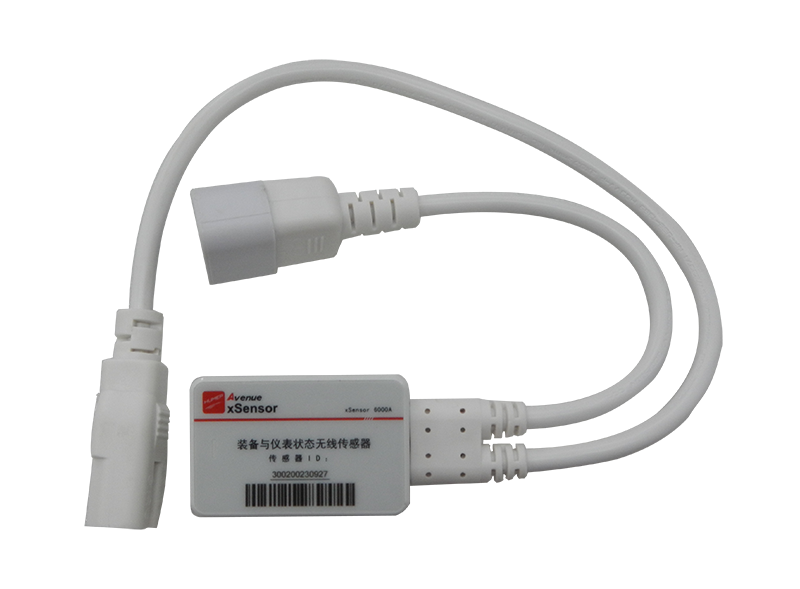

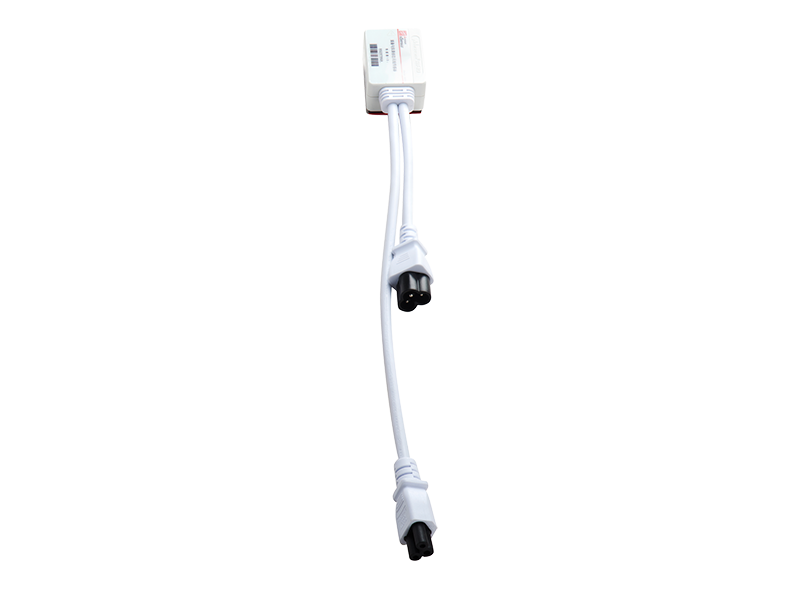

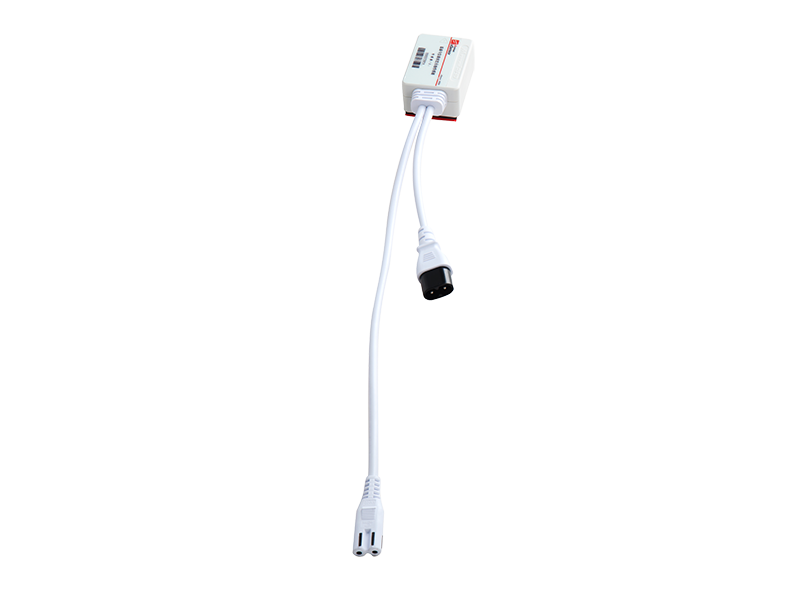

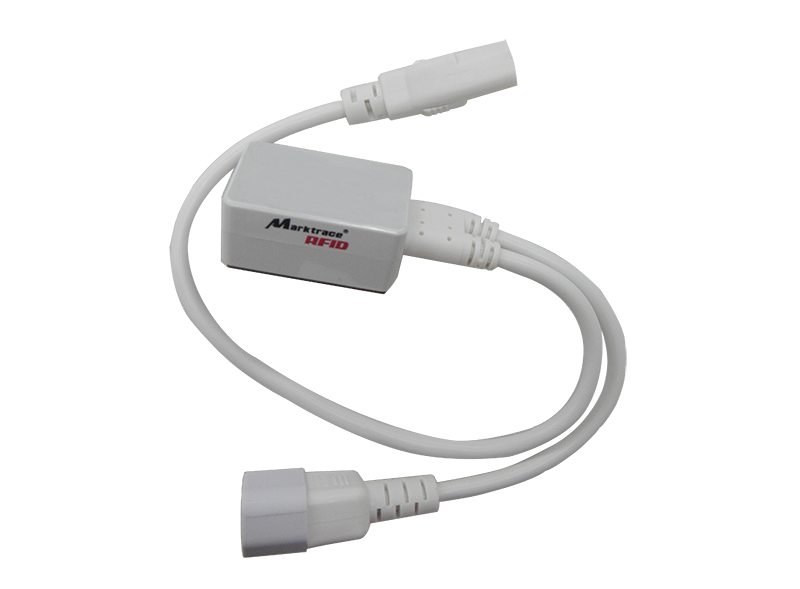

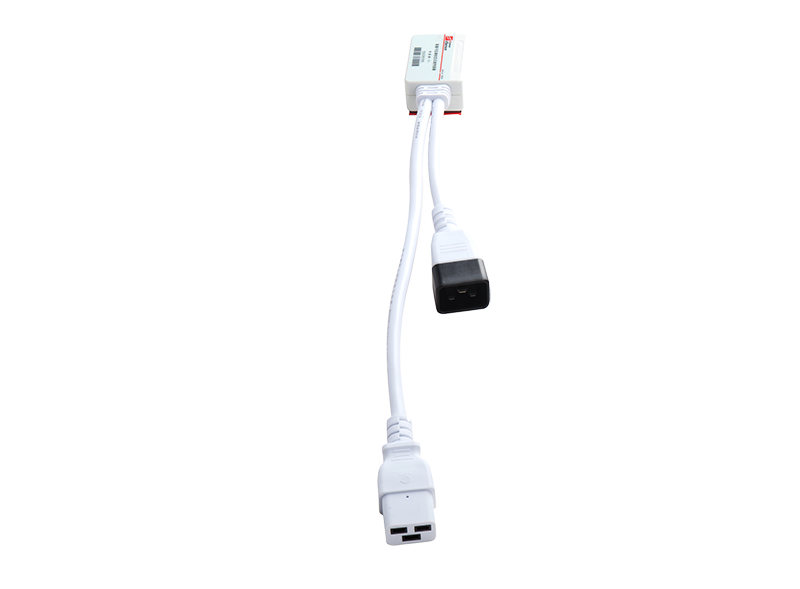

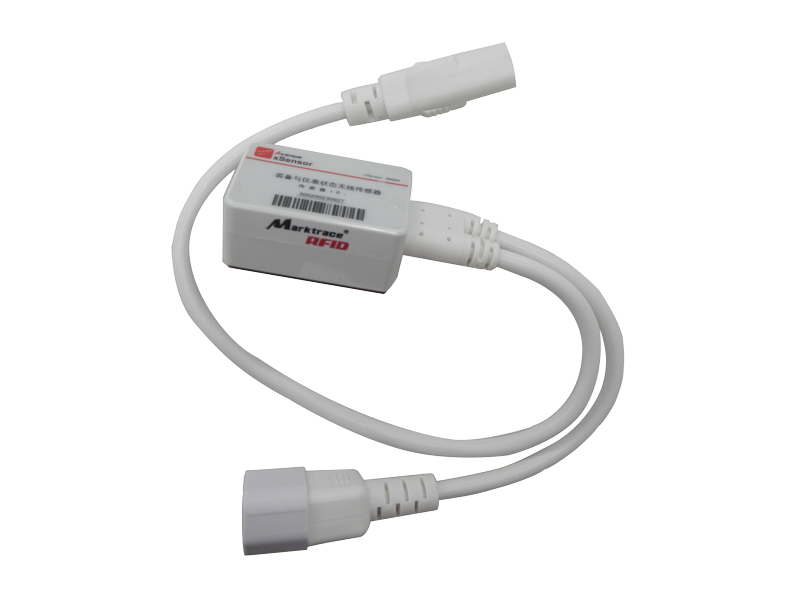

2.4G Current Monitoring RFID Tag MR3873X suit for information assets management of electrical equipments. It adopt RFID technology and current measurement technology. Not only for electrical equipment inventory checking, but also for working status real-time control and capacity utilization control. MR3873X has two male and female power input/output plug, easy to fixed on equipment. In real-time to control equipment current.
Measure up to GB2099.1-2008 and GB1002-2008 standard. More safe and reliable.
Power supply by AC，standby battery inside, working above 5 years.
Tamper alarm device avoid spite remove.High Precision current measurement, error less than 0.1%
Working with 2.4G RFID reader, reading range more than 100 meters.
Anti-tampering alarm feature to avoid malicious dismantling.
Typical applications are: Production line equipment like Mounter; Laboratory equipment like OLT/ Optical Module, Network Analyzer; Server room like Server, PC; Medical Instruments etc.
Parameters
Items | Parameters |
Electrical Features | Electrical Features |
AC Input Current | 0A~16A |
AC Input Volt | 110V ~ 130V/60Hz; 220V ~ 230V/50Hz |
Measuring Accuracy | 0A~2A，deviation ±5mA 2A~10A，deviation±10mA 10A~16A，deviation±50mA |
Sampling frequency | 8KHz |
Equivalent input noise | 19.1nV/Hz |
RMS measurement bandwidth | 4KHz |
Average current (during AC measurement) | 7mA typical, 10mA maximum |
Average current (when AC is not measured) | 20uA typical, 21uA maximum |
Air Discharge | 8000V |
Power Supply Mode | Combination of battery power supply and AC power supply |
Battery | 1200mAh 3.6V |
Life Time | 5 years |
RF Features | |
Working Frequency | 2.4GHz |
MAX Output Power | 0dBm |
Modulation Mode | GFSK |
Data Rate | 1Mbps |
Material | ABS, High temperature resistance, White Color |
Dimension | Body：61x41x26mm Cable:200mm Female 400mm Male |
Ingress Protection | 54 |
Environment Features | |
Working Temperature | -20℃ to +60℃ |
Store Temperature | -40℃ to +80℃ |
