2.4G IOT Smart Terminal
Model NO.：

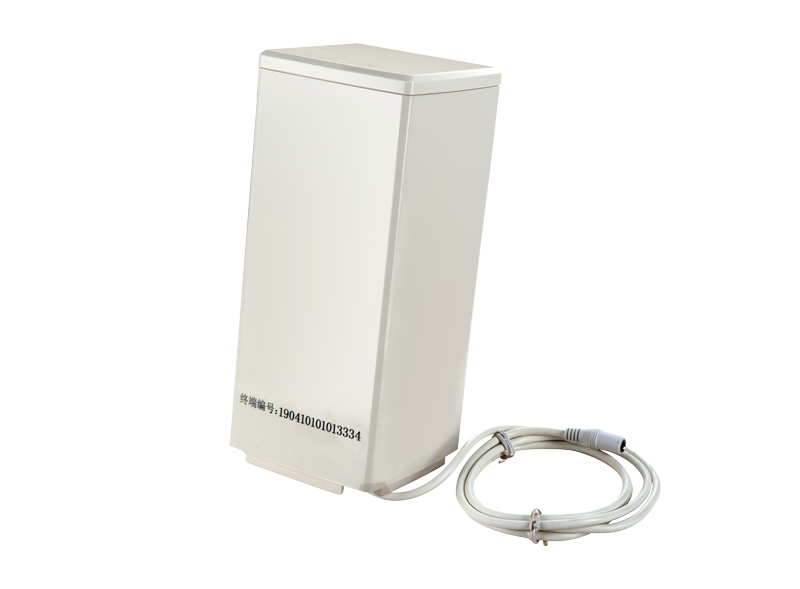

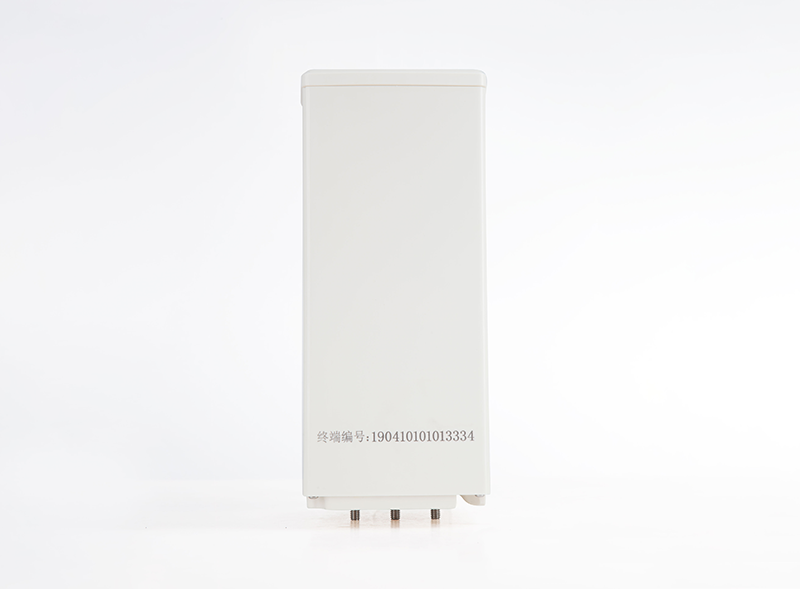

ZR7901P
Key Features

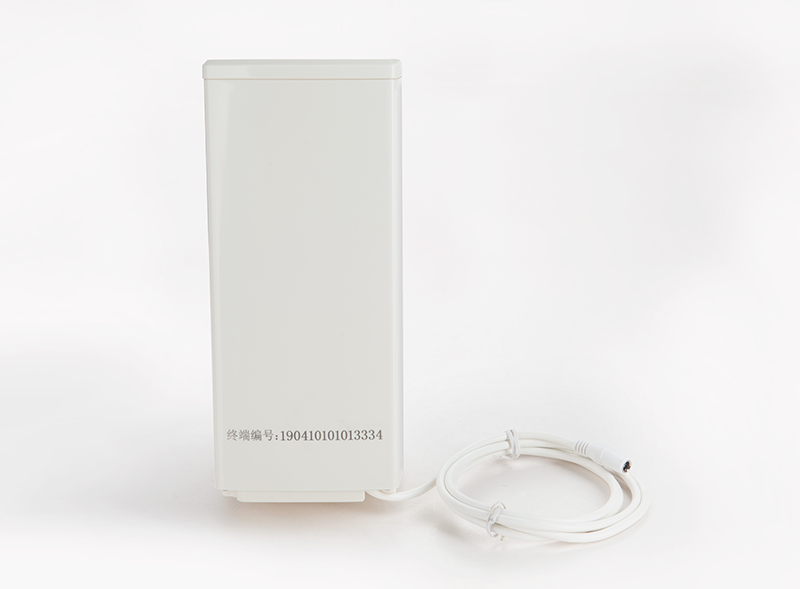

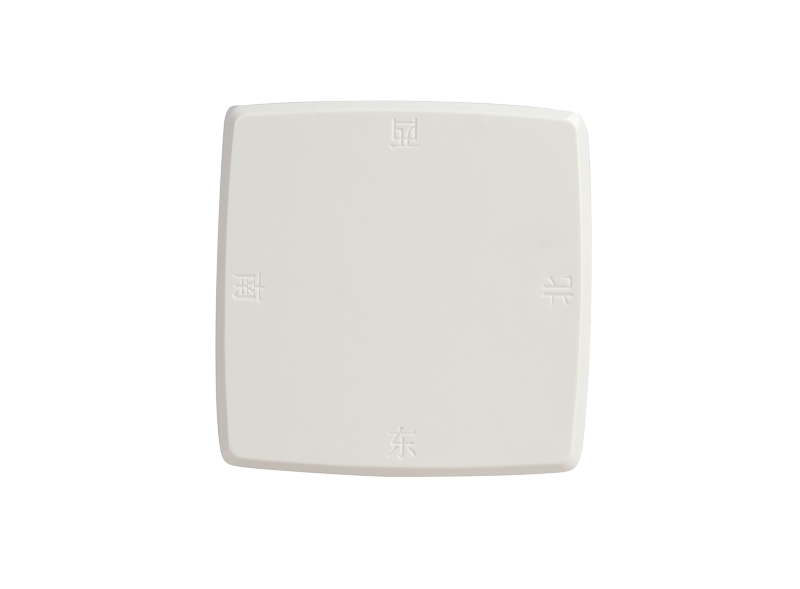

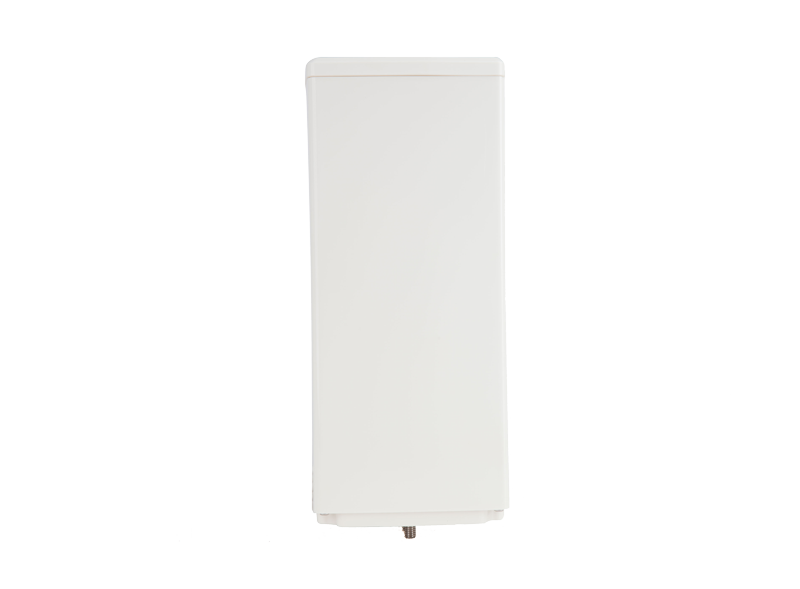

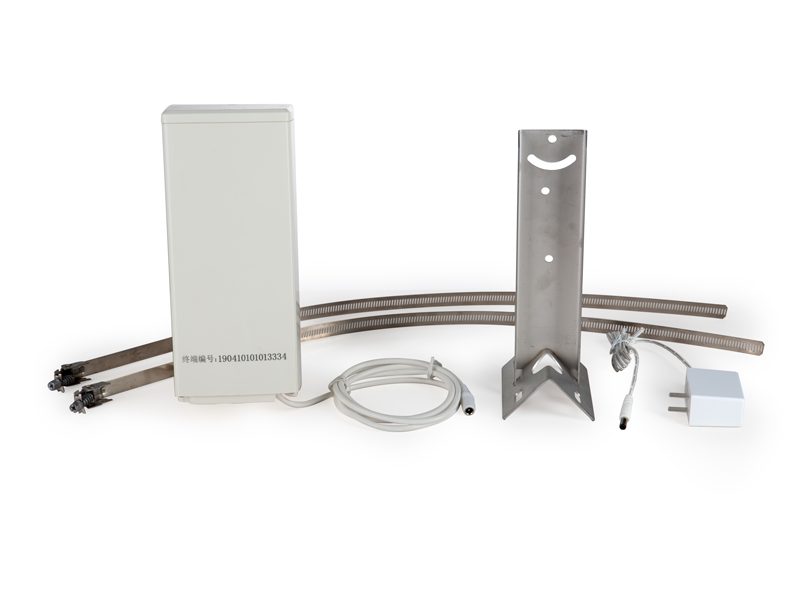

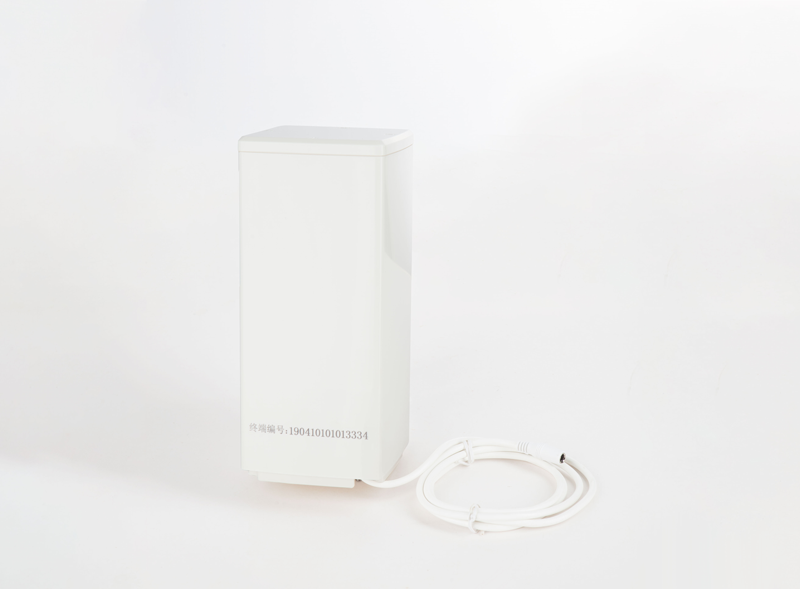

ZR7901P Animal Tracking Reader (animal husbandry) is a device for IoT data collection applications. It fully combines the characteristics of RFID technology to collect the information emitted by RFID tags in real time, and cooperates with the location information of the base station itself to realize the monitoring of personnel, vehicles, and animals. Position positioning, the farthest reading distance reaches 400 meters.
ZR7901P has a temperature and humidity sensor, which can monitor the temperature and humidity of the installation location. time detection.
At the same time, the ZR7901P Animal Tracking Reader uses a 32-bit ARM core MCU, which provides high-speed computing capabilities, and the ability to process more than 1,000 concurrent tags. It has high real-time and accuracy.
2.4GHz ISM open band, comply with wireless management regulations
Dual-polarized directional antenna for directional reading up to 400 meters.
Power outage alarm, the buffer buffer power supply can be reported in time to report the power outage information in time
Device management such as parameter configuration and remote upgrade via TCP/IP and GPRS.
Bluetooth BLE4.0 wireless connection for device parameter configuration.
High reliability: rainproof, lightning protection, against typhoon.
Data collection of pig farms and data collection of cattle and sheep pasture
Parameters
| Specification | Description |
| Model No | ZR7901P |
| Signal modulation mode | GFSK |
| Traffic rate | 1Mbit/s |
| Working frequency | 2440MHz |
| Lateral tension (wind-proof) | 20N (Typhoon level 12) |
| Lightning protection level | ≧ 4000V |
| Antenna gain | 12dBi Dual polarization directional antenna |
| MAX receive sensitivity | -90dbm |
| Reading range | MAX 400m (based on tag type) |
| IP | IP65 |
| Material | ABS, high temperature resistant, white color |
| Dimension | 230*106*106mm |
| Input voltage | 9-12V |
| Net weight | 2kg |
| Power consumption | 300mA |
| Power adaptor | 12V 2A |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -45℃~85℃ |
| Protocol | MarktraceRFID protocol |
| Transfer method | 4G and TCP/IP |
| Temperature measurement accuracy | 0.3℃ |
| Humidity measurement accuracy | 3%RH |
