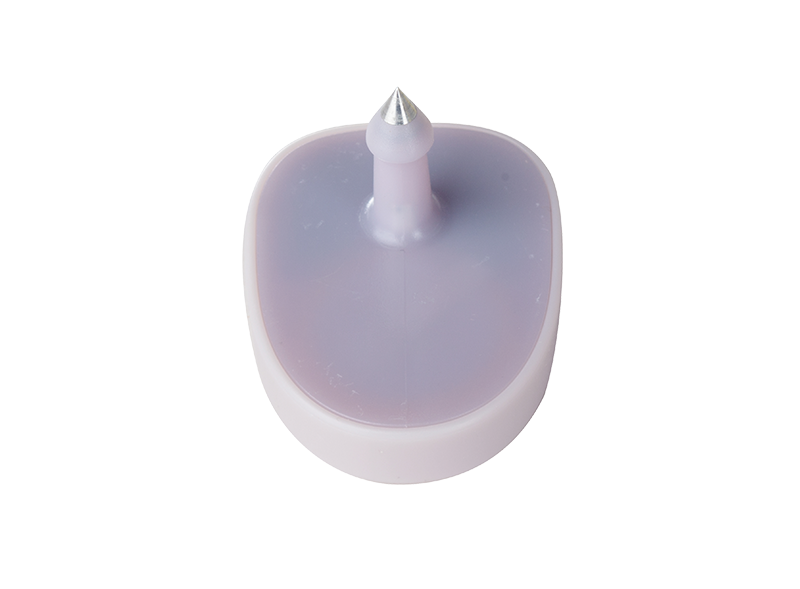

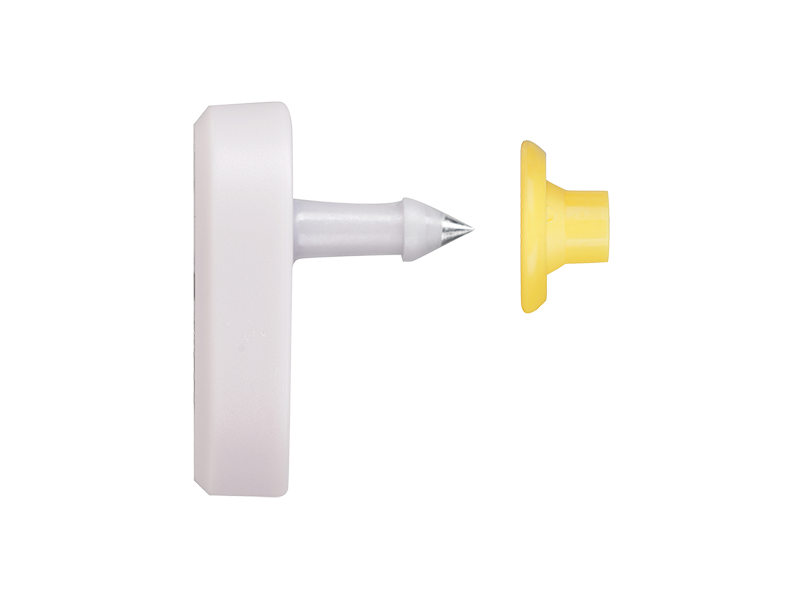

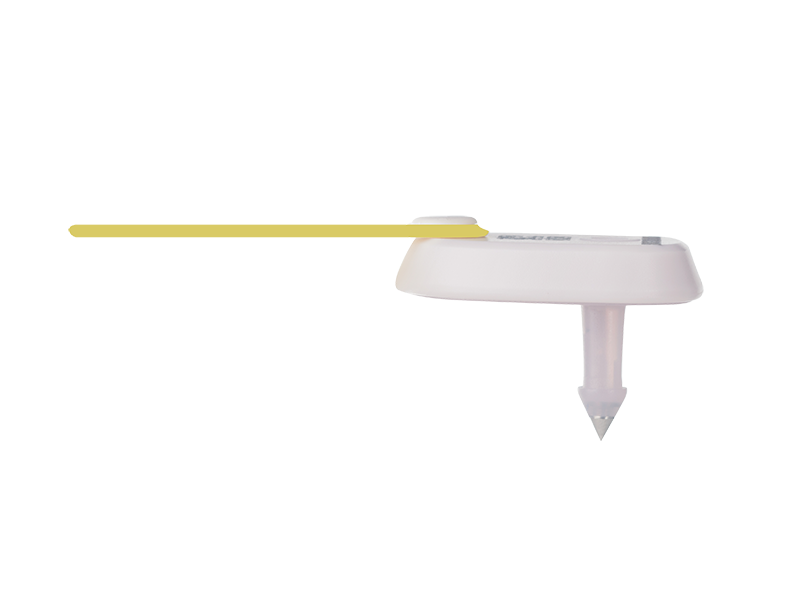

2.4G RFID Ear Tag
Model NO.：
ZR3258
Key Features
Based on the technical advantages of its own 2.4G active products, MarktraceRFID has developed and designed a unique 2.4G active animal ear tag on the market. It solves the problems of short communication distance and low recognition rate of passive ear tags on the market. 2.4G animal ear tags can be better used in large pastures and farms.
The 2.4G RFID ear tag adopts a very good anti-collision algorithm, and the recognition rate is as high as 99%. The working communication distance with 2.4G Ultra-long Range Integrated Reader can reach 400 meters.
A globally unique ID number that cannot be changed. At the same time, laser engraving customers' own numbers are also accepted. The factory standard is ID + QR code.
The advantages of 2.4G IoT communication technology can provide strong support for subsequent expansion functions such as ear temperature recognition, motion recognition etc.
The drop rate is 3% and the weight is 22g, which is in line with the relevant standards of the Ministry of Agriculture of various countries for animal ear tags.
As the definer and advocate of 2.4G communication protocol, we pursue to use simpler host computer communication data to facilitate customers to do secondary development and system docking.
Parameters
| Specification | Description | Specification | Description |
| Model No | ZR3258 | Unique ID | 15 digital ID in DEC, Lester Marking |
| Operation frequency | 2482MHz | Quiescent Current | <10uA |
| Type | Beacon Type | Peak Current | 20mA |
| Signal modulation | GFSK | Operating temperature | -20℃~+45℃ |
| Communication speed | 1Mbit/s | Operating humidity | 20%～95% |
| Inductive Mode | Initiative Transmit, Transmit Every 10s | Storage humidity | 10%~98% |
| Output power | 7dbm | Temperature measurement range | -20°C~+60°C |
| Material | ABS, Heat Resistant , | Temperature measurement accuracy | ±0.3℃ (32℃~45℃) ±0.5℃ (others) |
| Dimension | 46.5*36*9mm | Temperature measurement method | Contact |
| Life time | Battery Life Up to 3 years | Movement direction | X, Y, Z |
| Battery model | CR2450 | Range | ±2g |
| IP Grade | IP67 | Accuracy | ±8mg |
| Installation | Ear Piercing | Sampling frequency | 10Hz |
| Color | Flesh Color | Weight | 22g |
