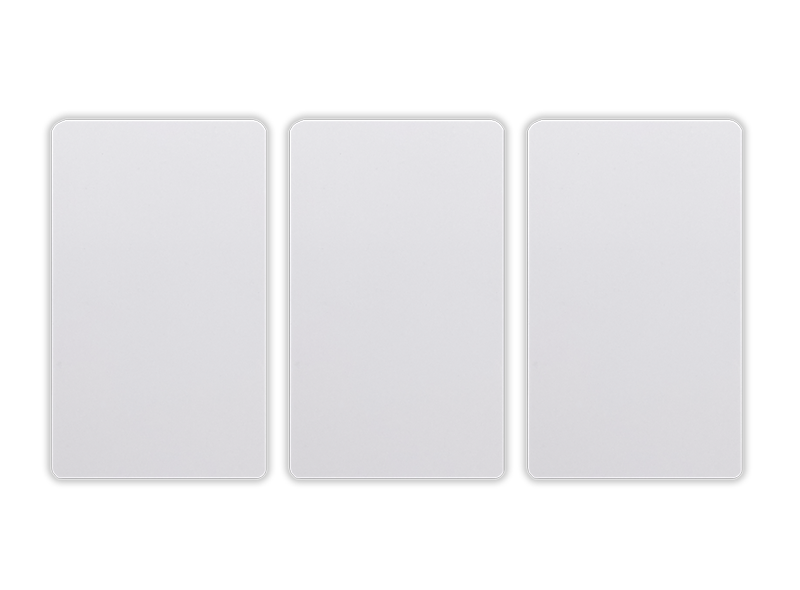

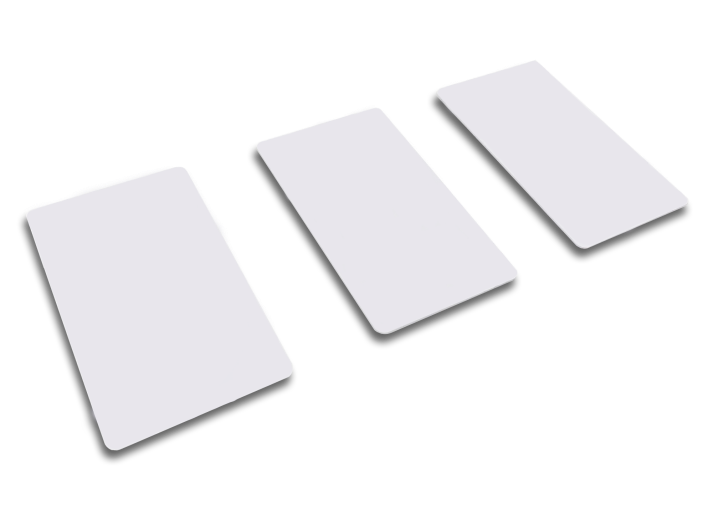

UHF Passive Electronic Card
Model NO.：
MR6700A
Key Features
Appropriate for frequency-hopping work mode, have strong anti-disturb ability
User can customize read-write normal data, make special application system’s efficiency more quick
Effective read distance can reach up to 8m (Related to reader and antenna).
Ultra-wide work frequency design, since conforming to relevant industry regulations, and doing flexible exploration applying.
It can read-write multiple-tags(up to 50pcs/s ),and is not affected and restricted by tag’s quantity in work area
Parameters
| Model Name | MR6700A |
| Supported Transponders | ISO18000-6C（EPC GEN2） |
| Frequency Range | ISM 860-960MHz |
| Operation Mode | Fixed Frequency or FHSS Software Programmable |
| Reading Rate | Software Programmable，Average Reading per 64Bits：<10ms |
| IC Module | Alien H3 or Impinj M4QT, R6 |
| Tags material | PVC normal material |
| Dimension | 86*54*0.84mm |
| Reading Range | >8 m related to reader and antenna(the farthest distance can reach to more than 12m |
| Operation Temp | －20℃~＋80℃ |
